iglidur® X6 | Runs up to six times longer than iglidur® X


• Long term service temperature up to +250 °C
• Up to 50 % better press fit than iglidur® X
• High compressive strength
• Excellent chemical resistance
• PTFE free
• Lubrication- and maintenance-free
• Standard range from stock

Due to nano-technology, iglidur® X6 shows up to six times better performance than iglidur® X in many oscillating and rotating applications – even at temperatures over +100 °C.

Typical application areas

Fluid technology
Glass industry
Food industry
Machine tools
Textile industry

You can find further applications here:
Industry solutions


When to use it? If temperatures are higher than +150 °C When the wear performance of iglidur® X in oscillation and rotation is not sufficient If the press-fit should be improved over iglidur® X If high media resistance is required If PTFE-free bearing is required

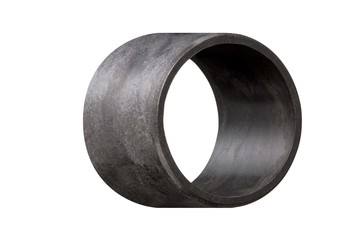

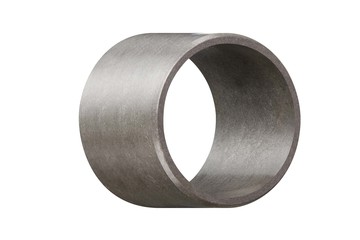

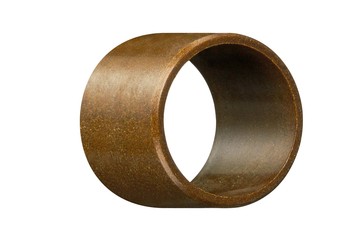

When not to use it? When a cost-effective universal bearing is needed iglidur® G, sleeve bearing, mm If the bearing is for use under water iglidur® UW500, sleeve bearing, mm iglidur® H370, sleeve bearing, mm When a wear-resistant high temperature bearing for linear movements is needed iglidur® Z, sleeve bearing, mm

Use our filter options to find the suitable product

Tolerances and measurement system
The installation dimensions and tolerances of iglidur® plain bearings are a function of the material and wall thicknesses. For each material, the moisture absorption and the thermal expansion are decisive factors. Plain bearings with low moisture absorption can be designed with a minimal bearing clearance. The rule for wall thickness: the thicker the wall of the bearings, the larger the clearances must be.
Testing methods

Assembly
iglidur® plain bearings are press-fit bearings. The inner diameter adjusts only after press-fitting in the correctly toleranced housing. The press-fit excess dimension can be up to 2% of the inner diameter. This ensures the secure press-fitting of the bearing. Axial or radial movement in the housing are prevented this way.
iglidur® - assembling, gluing, machining
