Configurator for
robotic equipment


Configure now

Multi-axis energy chain for robots - triflex® R


In 3D applications, rotating and pivoting movements are part of everyday life. Energy chains are required here, which safely guide and protect robot cables. The triflex R (TRE, TRC and TRL) energy chain has been specifically developed for demanding multi-axis robots. Due to its high tensile force absorption and high flexibility, the energy chain enables a rotation of about ±10° per chain link with complicated motions in the vertical axes. Compared to a cable protection hose, triflex R offers a defined bend radius, which greatly increases the service life of cables and hoses.


Contact our expert now



5 highlights in a 2-minute video

Innovations for robot technology

Tech up, Cost down: new cables, e-chains® and retraction systems specifically for robotics technology

You can find more information on these and further product innovations at our 400m2 trade show stand. You can either explore it virtually on your own or together with our industry expert. Make an appointment now for a guided virtual tour with individual consultation:

All 2020 new products and product extensions



    triflex_R_TR.917.924

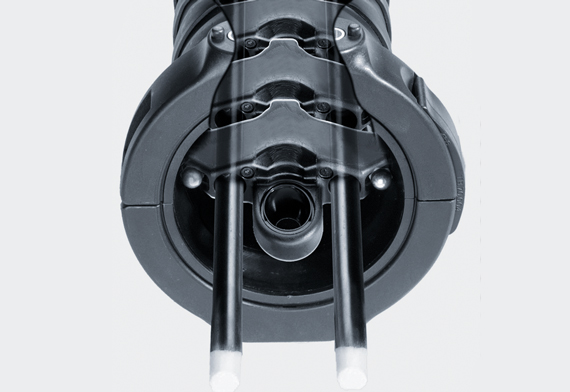

    Fibre-rod holder for UR10 and UR10e

    ▲ Tech up

    • Elongated holes enable infinitely variable adjustability of the fibre-rod module
    • Easy to retrofit (assembly video)
    • Low wear by holding the e-chain®  above the axis 4-6
    ▼ Cost down





    Go to UR fibre-rod holder

    e-chains_triflex_TR.RSEC.60
    Compact linear retraction system

    ▲ Tech up

    • System weight of only 2.2kg
    • Up to 290mm of retraction length
    • Easy to retrofit
    • Prevent loops on
      axes 4-6
    • Fixed end of the e-chain® can be freely placed due to the linear design
    ▼ Cost down
    • High running performance
    • 40 % more cost-effective compared to TR.RSE.60 retraction system
    • Reduction of downtime, maintenance-free
    • Modularised structure to the TR.RSE.40 and TR.RSE.50 retraction systems


    Go to TR.RSEC.60

    e-chains_triflex_TR.RSEL.60
    Retraction system in compact sizes 60 and 65

    ▲ Tech up

    • Up to 380mm of retraction length
    • Easy to retrofit
    • Prevent loops on
      axes 4-6
    • Optional guide plate behind the retraction system minimises wear of the e-chain®
    ▼ Cost down
    • High running performance
    • Less downtime, maintenance-free
    • Modularised structure to the TR.RSEL.70 and TR.RSEL.85 retraction systems





    Go to TR.RSEL.60

    Extension of the robot equipment configurator by:

    • 20 collaborating robots from Universal Robots, Techman Robots, Kuka to Yaskawa
    • Quantec-2 from Kuka
    • GP series from Yaskawa
    This results in an additional 2,000 variations, now with a total of up to 12,500 equipment variants in one tool.


    Try it for yourself

    Robot equipment configurator

    Your benefits at a glance:

    • Defined minimum bend radius for safe cable and hose routing in moving applications

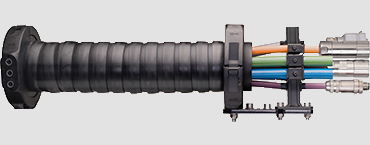

    • Also as a complete solution including  cables for the energy chain
    • High torsion resistance and defined torsion stop-dog
    • Modular design, can be easily lengthened and shortened
    • Option with fibre-rod
    • Easy assembly
    • Easy filling
    • Available from stock

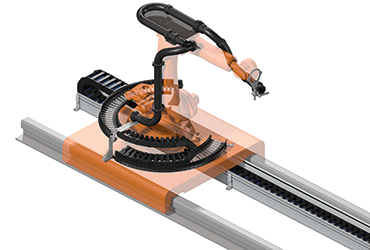

    Robot

    Energy chains for axis 2-6

    Retraction systems for axes 3-6

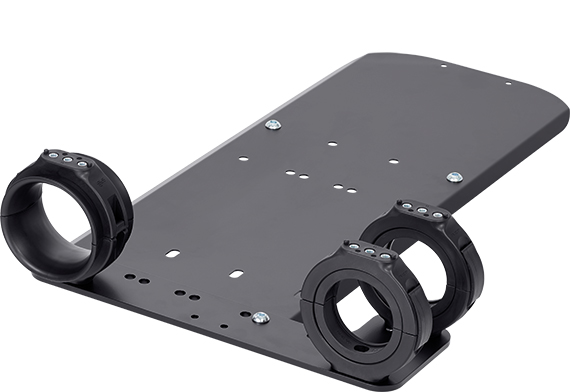

    triflex RS system

    • Retraction system with fibre-rods
    • Can be used with TRE and TRC versions
    • Prevents loop formation on the robot arm
    • Adapter for all common robot models
    • Additional attachments possible using cover
    • Defined retraction force


    triflex RS universal module

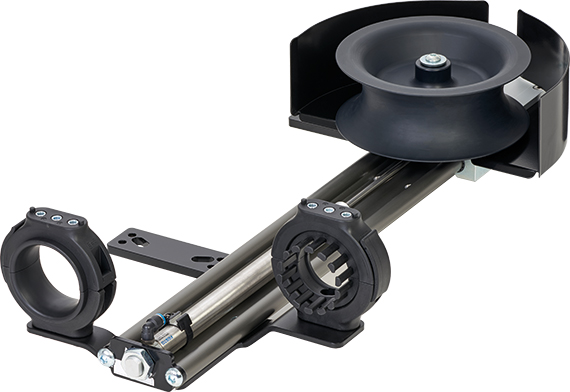

    triflex RSP system

    • Retraction system with pneumatic cylinder
    • Can be used with TRC/TRE/TRCF
    • Sizes 60-125
    • Retraction force is adjustable
    • Retraction force is almost linear
    • For high retraction forces


    triflex RSP - pneumatic retraction system

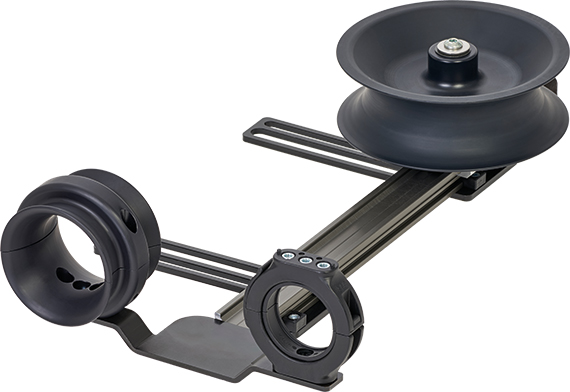

    triflex RSE system with deflection

    • Retraction system with elastomer bands
    • Guide roller as with RSP
    • Can be used with TRC/TRE
    • For sizes 40/50
    • For small robots
    • Weighs only 1.8kg
    • Compact design


    triflex RSE system - prevent loop formation

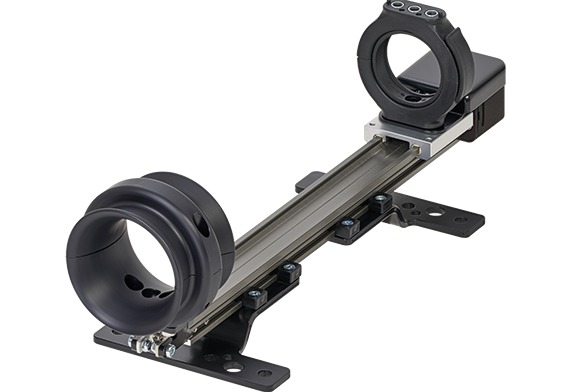

    triflex RSE system linear

    • Retraction system with elastomer bands
    • Can be used for TRE, TRC and TRCF versions
    • Sizes 40-100
    • Cost-effective
    • Space-saving
    • Simple installation


    Linear triflex® RSE retraction system

    Systems for the axis 1

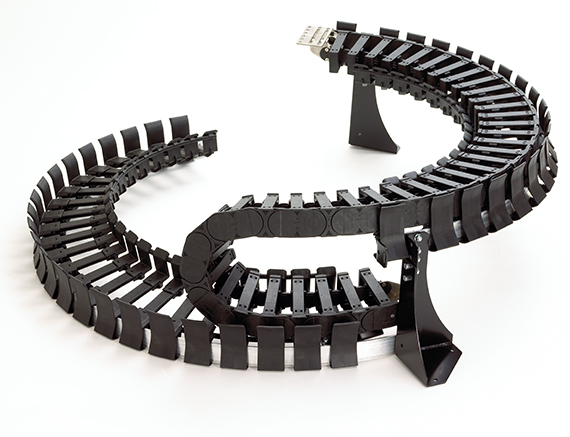

    twisterchain

    • External energy supply to axis 1
    • Rotation angle up to 540°
    • Modular guide trough system
    • e-chain® openable from both sides
    • 4 inner heights from 28mm to 56mm
    • Inner widths from 50mm to 200mm
    • Modular interior separation
    • For rotational speeds up to 4m/s
    • Can be configured for many robots


    To the twisterchain shop

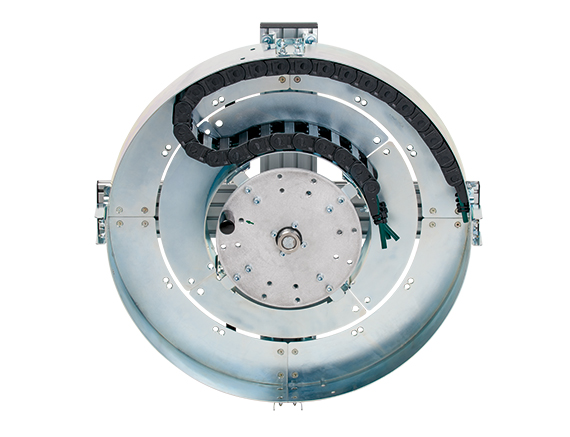

    Rotating energy supply - RBR

    The standard for circular movements

    • Rotation angles up to 540° (on one level)
    • Rotation angles of of 900° and more possible
    • Maximum rotation angle in minimal installation space
    • Rotation speed of up to 360°/s
    • Lighter and more compact than static guide troughs
    • Minimum displacement forces and maximum service life
    • Modular construction with standardised mounting options
    • Integrated strain relief and cable routing directly in the guide trough


    Rotating energy supply

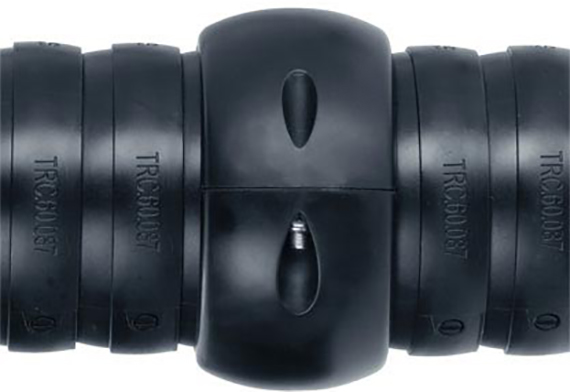

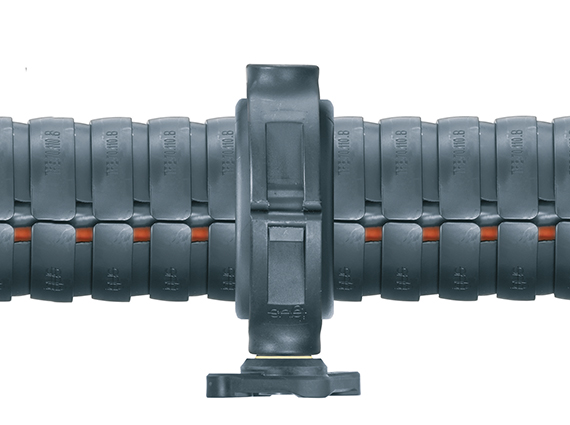

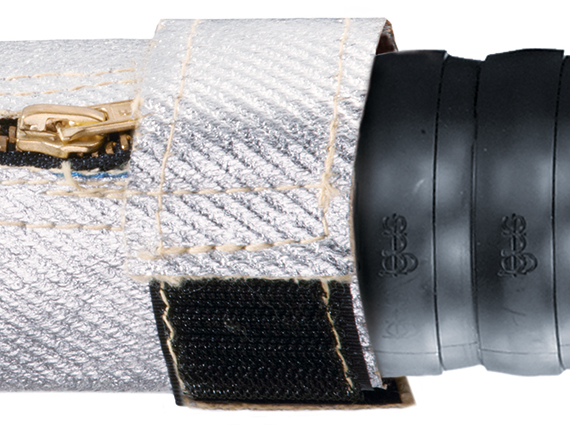

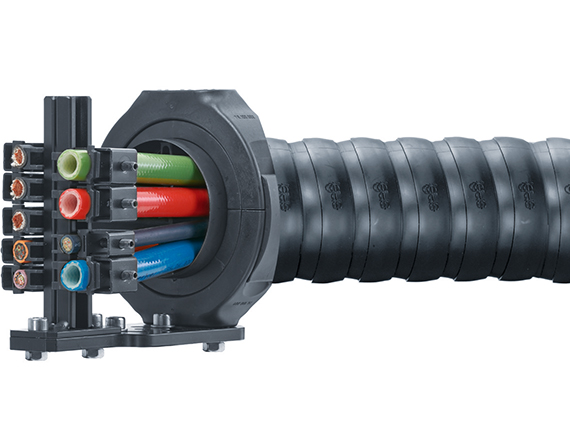

    Accessories for robots

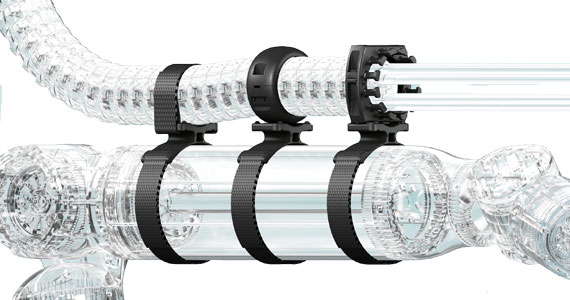

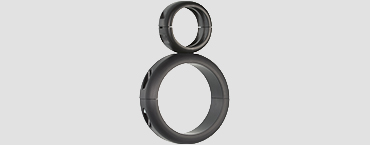

    Cobot clamps for energy chains and protective hoses

    Cost-effective, flexible, fast installation

    • For various robots arm diameters, universal applications
    • Silicone-free  and thus suitable for the
      automotive industry
    • Compact, smooth design
    • Slim, lightweight construction


    To the cobot clamp shop

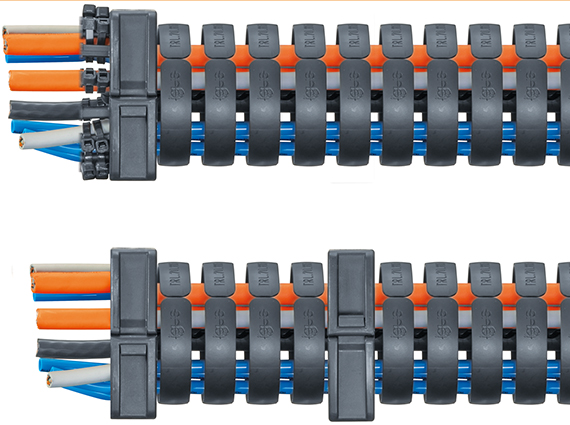

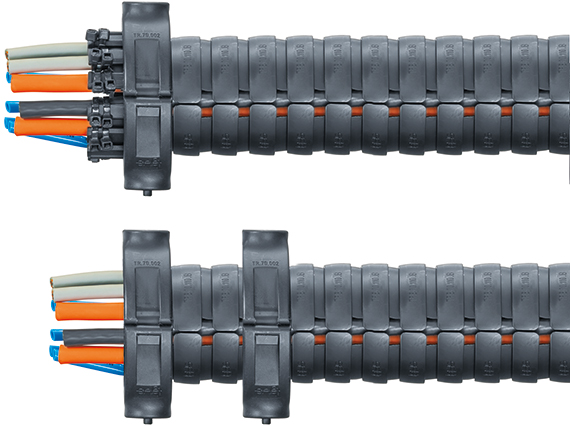

    Light mounting brackets

    Standard for TRL version. Also compatible with TRC/TRE. Available with strain relief and as an intermediate bracket.


    triflex R light mounting brackets

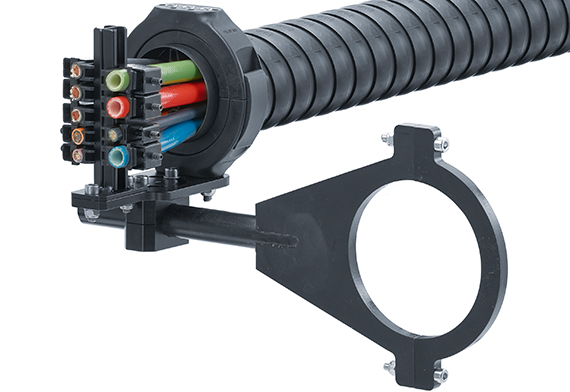

    triflex R clamps - attachment to axis 6

    Depending on robot design, with or without recess. Easy and fast assembly.


    Attachment to axis 6

    Further products

    SCARA solution

    SCARA solution

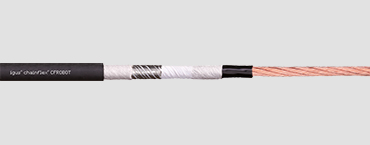

    chainflex robot cables

    chainflex® robot cables

    readycable robot cables

    readycable® robot cables

    Application examples of our customers

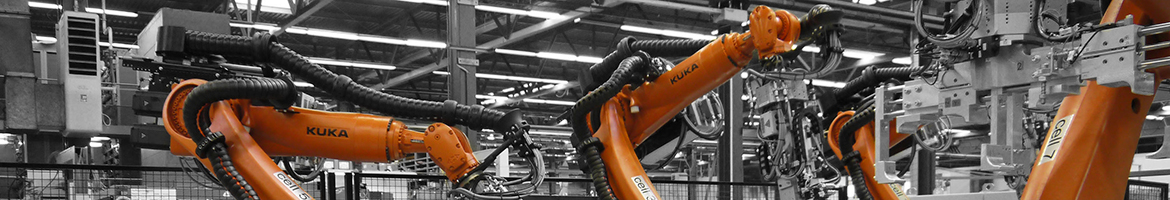

    Three dimensional energy chains for robotic applications

    Further information

    triflex assembly on the robot

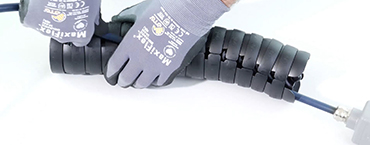

    triflex - installation videos
