<strong>drylin® E villanymotorok</strong><br><font size="7">24 órán belül szállítható</font>

drylin E elektromotorok

24 órán belül szállításra kész

Automation with stepper motors, DC motors and EC/BLDC motors

For linear axes and handling systems, igus offers a wide range of electric motors. Hybrid stepper motors, DC motors and brushless DC motors find their applications in lead screw drives, toothed belts and rack and pinion drives. The electric motors complete the range of igus automation technology. In this way, entire handling systems can be configured in combination with linear axes.

drylin E léptetőmotorok hajtástechnikai alkalmazásra

Stepper motors

Powerful in 5 sizes
Motors with metric connector or stranded wires
Safety with encoder and brake
With flattened motor shaft (D-Cut) for increased anti-rotation feature

Information on stepper motors

DC motors

Also available with protective housing
Torques from 0.1 to 1.8Nm
Speeds up to 440rpm
With flattened motor shaft (D-Cut) for increased anti-rotation feature

Information on DC motors

EC/BLDC motors

With Hall and encoder
Sizes NEMA: 17, 23 and 34
Virtually wear-free
Very high speeds
More cost-effective than conventional servomotors

Information on EC/BLDC motors

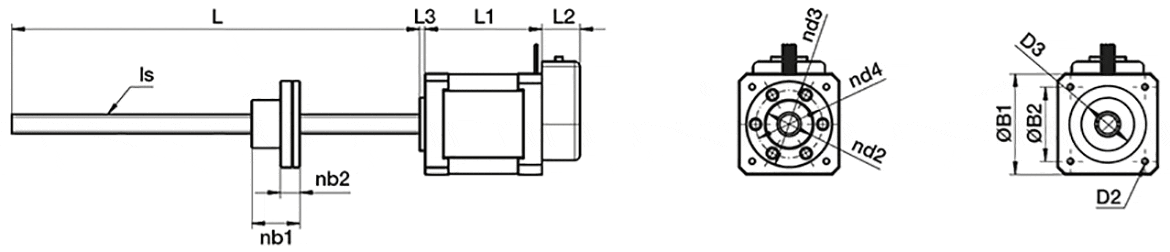

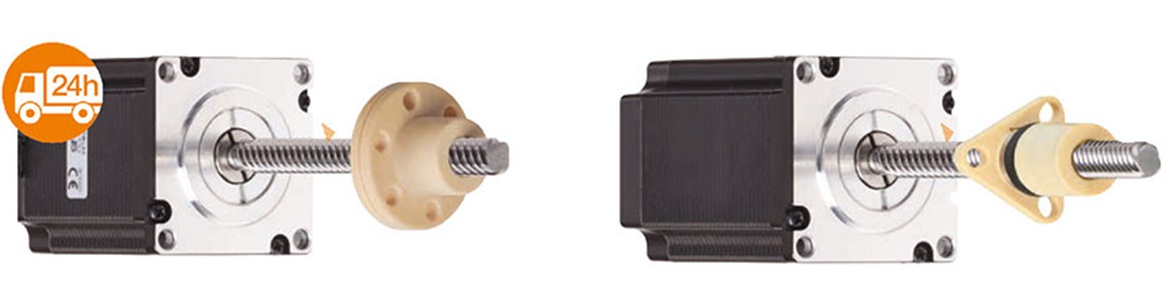

Lead screw stepper motors

3 sizes with holding torque 0.1-2Nm
7 lead screw types with pitches from 0.8-50mm
Matching lead screw nuts available
Lead screw can be attached from both sides for stepper motor without encoder

Information on lead screw stepper motors

Stepper motor with IP68 water protection

Installation size: NEMA23/flange dimension 56mm
Protection class - motor housing: IP68 (10m)
Holding torque: 1.30Nm
Rated current: 4.20A
Motor connection: Terminal box

To the online shop for stepper motors

DC motor with worm gear

With spline
Space-saving & quiet
Torques from 0.75Nm to 2.00Nm
Speeds up to 350rpm
Position encoder included

DC motor in the online shop

Miért a drylin E motorok?

Szállításra készen 24 órán belül

Folyamatosan nagy készletek

Hosszú termék élettartam

Hosszú távon elérhető termékválaszték

Nincs minimális rendelési mennyiség

100%-ban tesztelt

drylin E termékkereső

Elektromotorokhoz

Az expert alkalmazás néhány kattintással segít megtalálni a megfelelő motort az Ön alkalmazásához. Egyszerűen adja meg a kívánt kritériumokat.

Találja meg a megfelelő motort most

Elektromos lineáris hajtásokhoz

Assemble the right electric motor with our linear system quickly and easily in just a few steps.

Találja meg a megfelelő lineáris hajtást most

Vezérorsós motorokhoz

Find lead screw motors in just a few clicks: Simply enter your requirements and get matching results.

Találja meg a megfelelő vezérorsós motort most

Szolgáltatásaink

drylin E motor control systems

Travels, positions, speeds and operating times can be easily defined with the stepper motor dryve D1 via a control system that is based on a web interface. The D3 DC motor control system makes it possible to easily control guide carriages.

Quick initial operation
Simple and intuitive user interface
Compatible with industrial control systems
For all drylin linear axes

Information on motor control systems

drylin E sample programmes

Save costs and time with the sample programmes (sample codes) from igus

Download programmes with master/control programme & dryve parameterisation
Compatible with industrial manufacturers (Siemens, Beckhoff, Wago, etc.)
Compatible with common single-board computers/developer boards
(Arduino, Rasperry Pi, Beaglebone)

Tovább a mintaprogramokhoz

Application examples with igus motors

Positioning in the laser application laboratory

VONJAN Technology is a supplier, service provider and solution consultant for laser system manufacturers. In the in-house application laboratory, the positioning of the laser components must be set to an accuracy of 1/10 of a millimetre, depending on the application test. A drylin lead screw linear module with stepper motor and a control system from igus ensure the required accuracy and rigidity.

Tovább az alkalmazáshoz

XXL X-ray scanner

Whether cracks, fractures, inclusions, deformations or foreign objects: The Rex-Cell X-ray scanners and tomography systems from Flow Capture Germany GmbH can be used to find the smallest defects in components. When it comes to drive technology, the company relies on products from igus.

Tovább az alkalmazáshoz

Motorised mirror ceiling consisting of 120 mirrors

The TWAXIS mirror installation was developed by MACHINESHOP to create a unique decoration for the advanced cruise fleet of MSC Cruises. An extraordinary, motorised mirrored ceiling was created, which can be admired by passengers to a height of three storeys.

Tovább az alkalmazáshoz

Smooth movement in the sensor test bench

The company Hoffmann + Krippner manufactures highly specialised input systems, printed electronic components and components for the Internet of Things. To ensure that customers in a wide range of industries always receive the best quality, the products undergo in-house quality testing.

Tovább az alkalmazáshoz

Further application examples

Here you will find many more application examples from our customers from all industries. Discover the applications in which the drive technology products from igus have already been used.

Tovább az alkalmazási példákhoz

Ezek a lehetőségek is érdekelhetik

drylin E motor hajtás

The motor gearboxes of the drylin E series are characterised by their low backlash, quiet running, high drive torques and an efficiency of 96%.

Planetary gearbox for igus stepper motors NEMA 23 and 34
Increased motor torque
Higher holding torque of a brake
Two installation sizes
Reduction ratios of 3 & 5 available

To the online shop for motor gearboxes

drylin E csatlakozók

The coupling connects the drive pin of the axle and the motor pin. An elastic plastic element in the centre of the coupling transmits the motor torque. Both radial and axial clearance are equalised by this dampening element.

With square or round housing
20 versions in stock
Vibration-dampening & pluggable
Temperature range from -30°C to +100°C

Tovább a csatlakozó webáruházba

drylin E kapcsoló tápegységek

Our switch-mode power supply units offer an optimum solution for supplying power to numerous electronic applications. Thanks to standardised installation in control cabinets on TS35 DIN rails or top-hat rails, you not only save space, but also valuable time.

8 versions in the online shop
Rated power from 75 - 960W
Ready to ship in 24h
Suitable for igus motor controls

Tovább a tápegység webáruházba

drylin E motor cables

The right connection cable for every motor! In our online shop you will find cables for stepper, EC/BLDC and DC motors. The individual cables are categorised into motor cables, angular encoder cables and brake cables.

Lengths of 3m, 5m, 10m or 20m
Various outer materials
Straight and angled connectors
Available from stock

To the online shop for motor cables
