drylin® linear guides

Gliding instead of rolling – low noise, clean and lubrication-free
The product range of lubrication-free drylin® linear guides is based on the principle of "gliding instead of rolling". In combination with corrosion-free materials, tribo-optimised iglidur® high performance polymers are used as a sliding surface. drylin® linear guides traverse in dry operation and are thereby maintenance-free and are insensitive to influences such as dirt, water, chemicals, heat or impacts. In addition, they have a very low noise because of the materials used and the special design. With these properties, drylin® linear guides can be used in a wide variety of environments, including extreme ones. The modular system allows for high flexibility with different rail guides and pillow blocks.

Termékek

Termékek száma: 110

drylin® W-Econ double rail WS-CA
  • Consistent silver rail finish
  • "econ" cost-effective and corrosion-free due to clear anodised coating
  • Available as drylin® W single rails and double rails in installation sizes 10/16/20 (round)
  • Suitable for all drylin® W single bearing housings and linear carriages
  • Lifelong rattle-free through combination with pre-loaded drylin® W linear bearings series WJ200UM-01-Pxx
  • Individual bearing clearance adjustment by using WJ200UME-01 bearing housings
  • Design: Double Rail
  • Material: Aluminium
  • Rail profile: Round

kérésre


Szállítási idő kérésre
Tovább a termék oldalára
drylin® W-Econ single rail WS-CA
  • Consistent silver rail finish
  • "econ" cost-effective and corrosion-free due to clear anodised coating
  • Available as drylin® W single rails and double rails in installation sizes 10/16/20 (round)
  • Suitable for all drylin® W single bearing housings and linear carriages
  • Lifelong rattle-free through combination with pre-loaded drylin® W linear bearings series WJ200UM-01-Pxx
  • Individual bearing clearance adjustment by using WJ200UME-01 bearing housings
  • Design: Single Rail
  • Material: Aluminium
  • Rail profile: Round

kérésre


Szállítási idő kérésre
Tovább a termék oldalára
drylin® W - double rail WS
  • Design: Double Rail
  • Material: Aluminum, hard anodized
  • Rail profile: Round

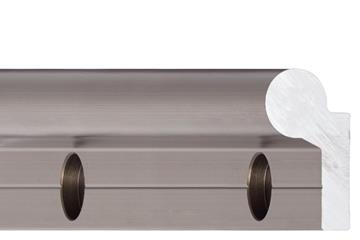

drylin® W- single rail WS
  • Design: Single Rail
  • Material: Aluminum, hard anodized
  • Rail profile: Round
drylin® W- complete slide system WW
  • Design: round
  • Material sliding element: iglidur® J200
  • Material: Die-cast zinc
drylin® W- single rail WS-ES
  • Design: Single Rail
  • Material: stainless steel 1.4571
  • Rail profile: Round

kérésre


Szállítási idő kérésre
Tovább a termék oldalára
drylin® W- pillow block WJ200UM-01
  • Material: Die-cast zinc
  • Material sliding element: iglidur® J200
drylin® W- complete slide system WW-HKA
  • Design: round
  • Material sliding element: iglidur® J
  • Material: Die-cast zinc
drylin® W - double rail WSX
  • Design: Double rail high profile
  • Material: Aluminum, hard anodized
  • Rail profile: Round
drylin® W- complete slide system WWC
  • Design: square
  • Material sliding element: iglidur® J
  • Material: Aluminium

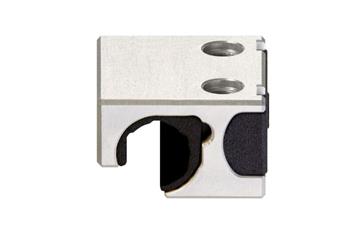

drylin® W- pillow block WJ200UMA-01-AL
  • Fast bearing change without disassembly
  • Smart maintenance directly on the rail
  • For single, double and high profile rails round ø 10 mm
  • Material: Aluminium
  • Material sliding element: iglidur® J200
drylin® W - double rail, WSPC
  • Design: Double rail high profile
  • Material: Carbon
  • Rail profile: Square
drylin® W- complete slide system WW-SL-HKA
  • Design: round
  • Material sliding element: iglidur® J
  • Camera carriage 3/8" threaded hole
  • Material: Die-cast zinc

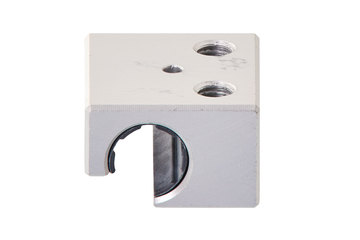

drylin® W- pillow block WJ200UM-01-AL
  • Material: Aluminium
  • Material sliding element: iglidur® J200
drylin® W- single rail WSQ
  • Design: Single Rail
  • Material: Aluminum, hard anodized
  • Rail profile: Square
